When you power a multiport repeater/link controller that’s operating multiple repeaters, which repeater power supply powers your controller? If there’s only one repeater supplying power, what happens to the controller when that power supply fails? Yup. You lost power to the controller that’s controlling all of your repeaters.

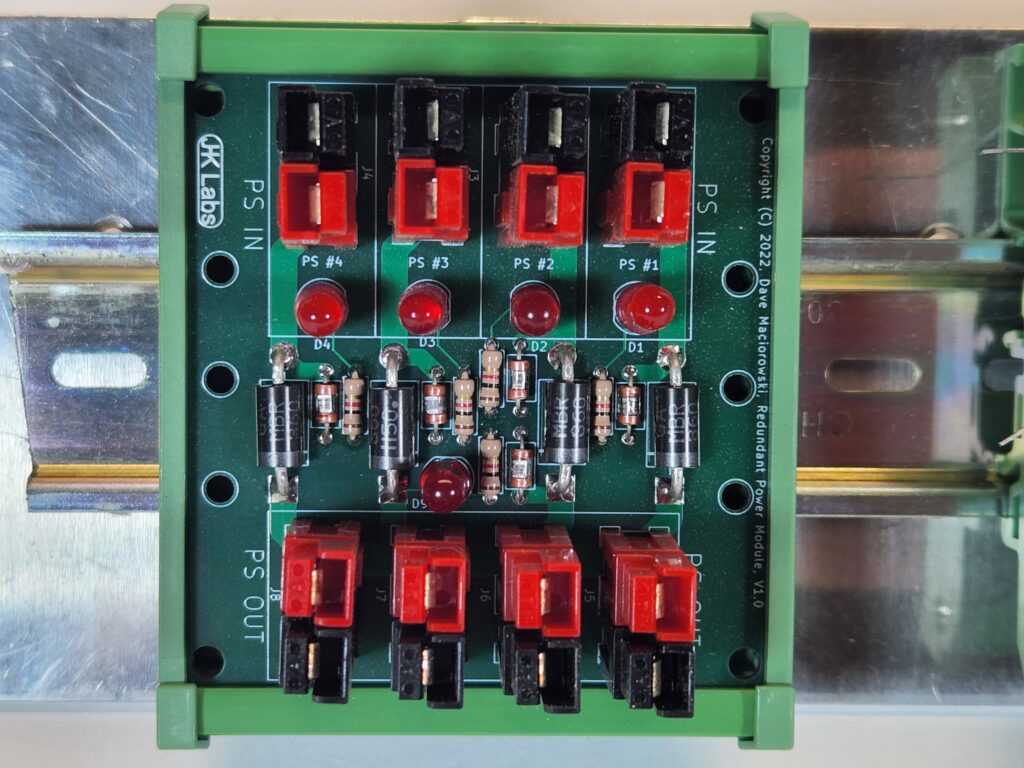

That’s what happened at one of my sites. My solution was to build a Redundant Power Module that accepts power in from multiple power supplies and powers not only my repeater controller but also other site management and power hardware. At my sites, the other hardware is a network router/switch and remote power controller.
Features
- Four Power Supply inputs equipped with Power Pole connectors
- Four load outputs equipped with Power Pole connectors
- 3 Amp maximum current
- 12V or 24V operation
- DIN Rail mount or panel mount
Availability: COMING SOON!
- Partial Kit — includes PCB and 3 Amp Schottky diodes, supply your own Power Pole connectors, LEDs, resistors.
- Full Kit — includes PCB, 3 Amp Schottky diodes, Power Pole connectors, LEDs, resistors
- Assembled
NOTE: if you aren’t a Power Pole user, I have a module version planned with terminal strips if there is interest. Let me know.
